prtools.pixelate#

pixelate(img, oversample=1)[source]#

Apply the aperture effects of an idealized square pixel using the FFT.

Parameters:

  • img (array_like) – Input image

  • oversample (float, optional) – Oversampling factor of img. Default is 1.

Returns:

out – Image with pixel sampling effects applied.

Return type:

ndarray

Notes

To avoid the introduction of numerical artifacts, this function should be performed on data that is at least 2x oversampled.

Examples

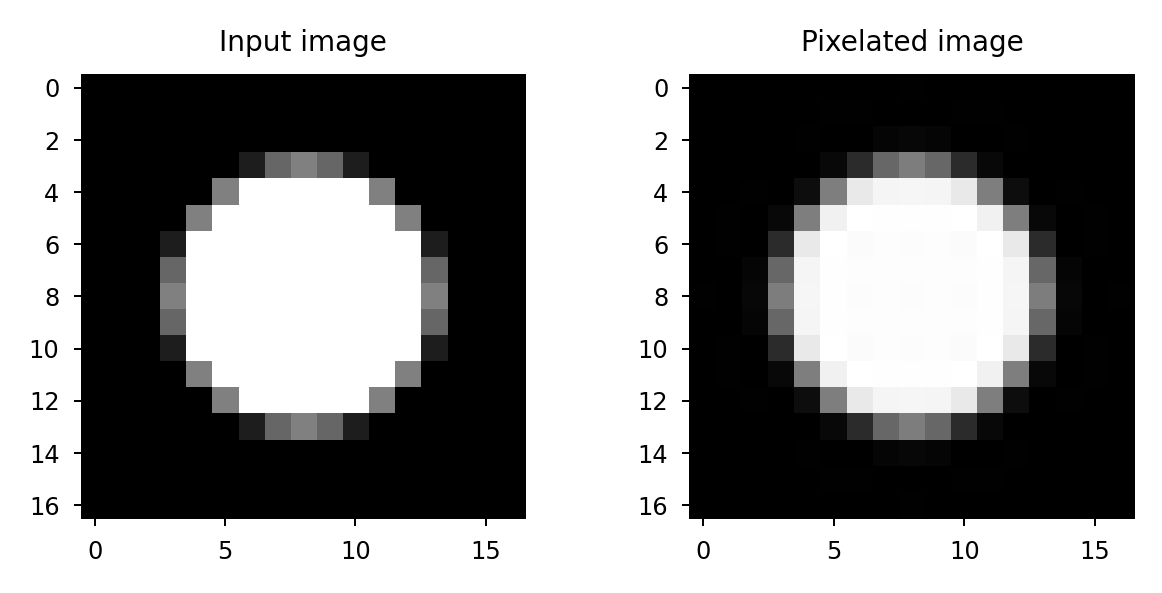

>>> img = prtools.circle((17,17), 5)
>>> img_pixelate = prtools.pixelate(img)
>>> fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(5,2))
>>> ax[0].imshow(img, cmap='gray')
>>> ax[0].set_title('Input image')
>>> ax[1].imshow(img_pixelate, cmap='gray')
>>> ax[1].set_title('Pixelated image')
../_images/prtools-pixelate-1.png

Note that the pixelation process preserves image power:

>>> print(np.sum(img), np.sum(img_pixelate))
64.0, 64.0
